小型無油空壓機打氣泵
研發生產ODM/OEM高新制造企業13886501872 13809667059
13886501872
13809667059
1.馬達裝有可自動恢復式溫度保護器
2.重載型，直驅式強勁大馬達
3.低噪音
4.無油設計
5.高強度不銹鋼密氣閥門
6.高性能耐磨活塞環
7.陽極鋁合金氣缸
8.低噪音耐久型氣泵及馬達，提供安靜的工作和長久的壽命
9.防潮防塵
10.耐熱包鋼紗橡膠管，配單向閥和旋轉接頭
11.雙層過濾器，可遠程安裝
12.配減震腳墊

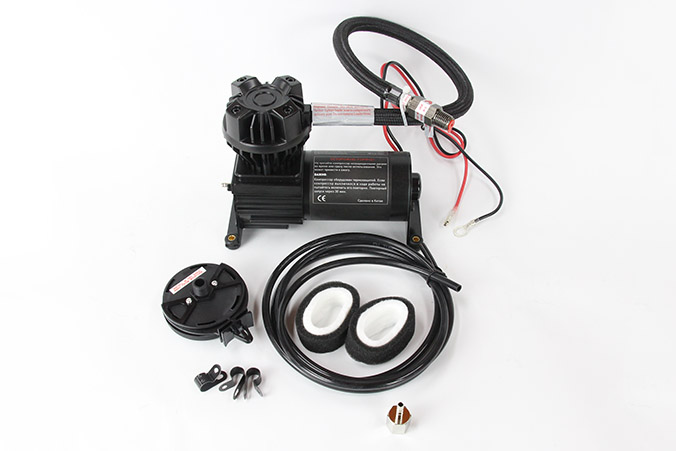

所包含的配件： 安裝螺絲組，減震腳墊，遠程安裝過濾器組，包鋼紗橡膠管，單向閥
13886501872
13809667059
|
12-Volt |
|
|
永磁馬達 |
|
|
工作循環 |
15% @ 100 PSI |
|
最大工作壓力 |
130 PSI |
|
最大電流 |
16 Amps |
|
最大瞬間壓力 |
220 PSI |
|
性能數據 |
|||||
|
PSI |
CFM |
A |
BAR |
LPM |
A |
|
0 |
1.34 |
8.9 |
0 |
38 |
8.9 |
|
10 |
1.13 |
10.9 |
1 |
30 |
11.5 |
|
20 |
0.99 |
12.5 |
2 |
26.9 |
13.6 |
|
30 |
0.95 |
13.6 |
3 |
26.2 |
14.6 |
|
40 |
0.94 |
14.5 |
4 |
24.5 |
15.4 |
|
50 |
0.9 |
15.2 |
5 |
21.8 |
15.9 |
|
60 |
0.81 |
15.6 |
6 |
21.2 |
16 |
|
70 |
0.78 |
15.8 |
7 |
19.8 |
16.2 |
|
80 |
0.76 |
16 |
8 |
17.6 |
16.2 |
|
90 |
0.74 |
16.2 |
9 |
16.4 |
15.9 |
|
100 |
0.71 |
16.2 |
10 |
14.3 |
15 |
|
110 |
0.65 |
16.2 |
|||
|
120 |
0.6 |
16.1 |
|||
|
130 |
0.58 |
15.9 |
|||
|
140 |
0.55 |
15.2 |
|||
|
150 |
0.46 |
14.8 |
*電源電壓: 13.8 Volts |
||
|
充氣速度 |
|
|
0.5 Gallon Tank |
Fill Rate |
|
0 To 105 PSI |
43 Sec. |
|
85 To 105 PSI |
9 Sec. |
|
0 to 120 PSI |
52 Sec. |
|
90 to 120 PSI |
15 Sec. |
|
1.0 Gallon Tank |
Fill Rate |
|
0 To 105 PSI |
1 Min. 30 Sec. |
|
85 To 105 PSI |
22 Sec. |
|
0 to 120 PSI |
1 Min. 42 Sec. |
|
90 to 120 PSI |
30 Sec. |
